ClusterPulse consists of several components that work together to provide secure multi-cluster monitoring with both pull and push-based collection modes.

System Overview

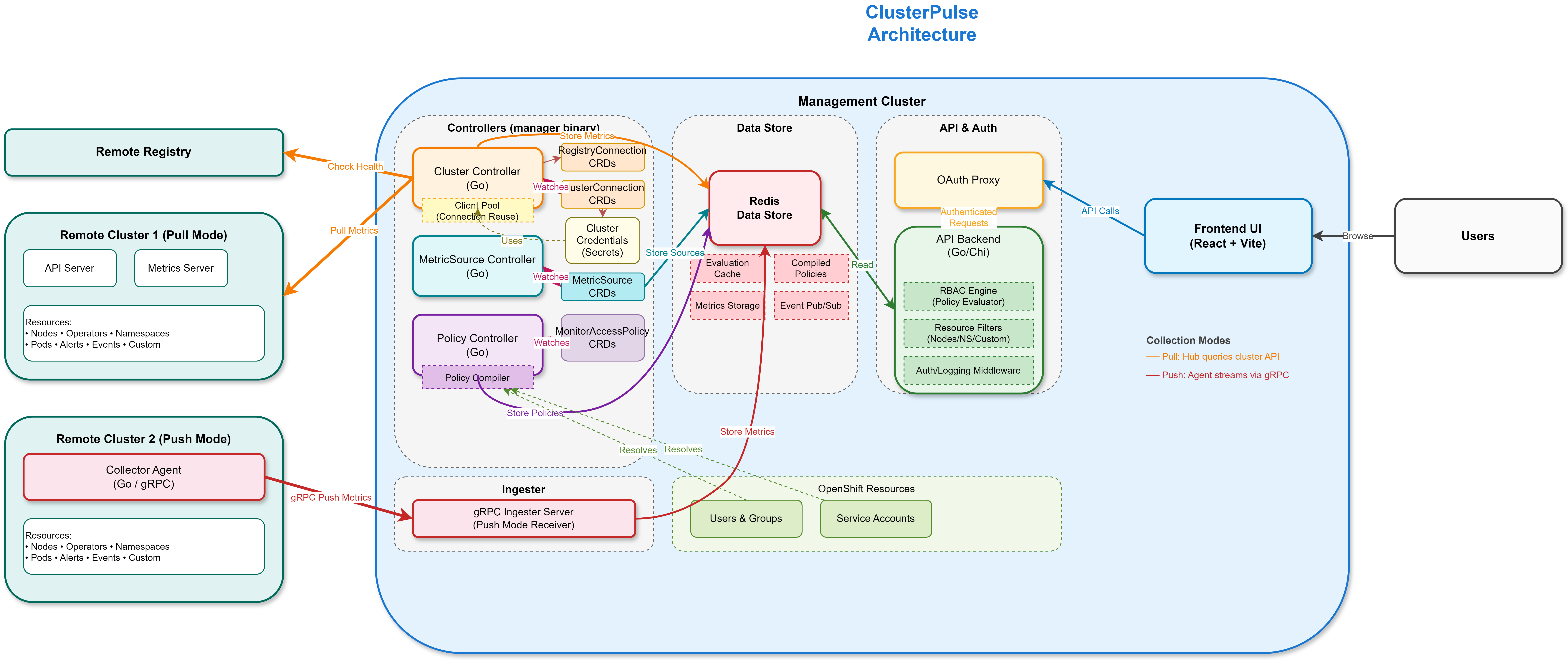

Diagram

Components

Cluster Controller (Go)

The Cluster Controller is a Kubernetes operator that:

  • Watches ClusterConnection CRDs
  • Connects to remote clusters using provided credentials
  • Collects metrics (nodes, pods, operators, resources) using MetricSource CRDs
  • Stores data in Redis for the API to consume
  • Hosts the Ingester gRPC server for push-mode collectors
  • Deploys collector agents to managed clusters when collectionMode: push

Learn more →

Collector Agent (Go)

The Collector Agent is a lightweight binary deployed on each managed cluster in push mode. It:

  • Runs as a single-replica Deployment in clusterpulse-system namespace
  • Reuses the same collection packages as the hub controller
  • Collects metrics locally using in-cluster ServiceAccount (no remote tokens)
  • Pushes metrics to the hub Ingester via gRPC bidirectional streaming
  • Buffers up to 10 collection cycles locally during network outages
  • Receives MetricSource configs from the Ingester (no hub k8s API access needed)

Ingester (embedded in Cluster Controller)

The Ingester is a gRPC server embedded in the cluster controller (cmd/manager/). It can be enabled via clusterEngine.ingester.enabled in the ClusterPulse CR, which provisions the Service, Route, and TLS infrastructure automatically (see Configure Ingester TLS).

  • Accepts bidirectional streaming connections from collector agents
  • Supports optional TLS termination for OpenShift Route passthrough (see Configure Ingester TLS)
  • Authenticates collectors via bearer token metadata
  • Transforms protobuf messages to internal types
  • Dual-writes to Redis (current state) and optionally VictoriaMetrics (time-series)
  • Publishes events via existing pub/sub channels
  • Pushes MetricSource config updates to connected collectors

Policy Controller (Go)

The Policy Controller compiles RBAC policies and runs as part of the unified cluster-controller binary (cmd/manager/), not as a standalone process.

  • Watches MonitorAccessPolicy CRDs
  • Compiles policies into efficient evaluation structures
  • Indexes policies by user/group for fast lookup
  • Validates time-bound policies

Learn more →

API Server (Go/Chi)

The API Server handles all user requests:

  • Authenticates users via OAuth proxy headers
  • Resolves group membership from OpenShift User/Group resources
  • Evaluates RBAC policies for every request via the built-in RBAC engine
  • Filters resources based on user permissions
  • Serves historical metric data from VictoriaMetrics (when enabled)
  • Lives in cmd/api/ alongside the controller manager

Learn more →

VictoriaMetrics (optional)

When enabled, VictoriaMetrics provides time-series storage for historical metrics:

  • Receives data from the Ingester via remote-write (Prometheus text format)
  • Stores cluster and node metrics with 30-day retention (configurable)
  • Queried by the API server via PromQL HTTP API
  • RBAC applied at query time by scoping to accessible clusters

Collection Modes

ClusterPulse supports two collection modes, configurable per-cluster via the collectionMode field on ClusterConnection:

Mode Description When to Use
pull (default) Hub controller pulls metrics via remote API calls Small deployments, simple setup
push Collector agent on managed cluster pushes metrics via gRPC Large deployments, restricted networks, WAN optimization

Both modes coexist. The hub controller falls back to pull-based collection when a push-mode collector is not connected.

Data Flow

Pull Mode (default)

  1. Cluster Controller collects metrics every 30 seconds via remote k8s API
  2. Data is stored in Redis with TTL
  3. Policy Controller indexes policies for fast lookup
  4. API Server receives user request, applies RBAC, returns filtered data

Push Mode

  1. Collector Agent collects metrics locally on the managed cluster
  2. Agent pushes metrics to hub Ingester via gRPC stream
  3. Ingester dual-writes to Redis (current state) and VictoriaMetrics (history)
  4. API Server serves current data from Redis, historical data from VictoriaMetrics
  5. RBAC filtering applied identically to both modes

Communication

Managed Cluster A                    Hub Cluster
+---------------------+             +-------------------------------+
| Collector Agent     |  gRPC/TLS   | Manager (existing)            |
| (reuses existing    | ----------> |  + Ingester Server            |
|  collection pkgs)   |             |    - validates, transforms    |
+---------------------+             |    - dual-writes:             |
                                    |      Redis (current state)    |
Managed Cluster B                   |      VictoriaMetrics (history)|
+---------------------+             +-------------------------------+
| Collector Agent     |  gRPC/TLS          |              |
|                     | ---------->   VictoriaMetrics    Redis
+---------------------+             (time-series)     (existing)
                                           |              |
                                    +------+--------------+------+
                                    |        API Server          |
                                    |  current: Redis            |
                                    |  history: VictoriaMetrics  |
                                    |  RBAC: unchanged           |
                                    +----------------------------+
